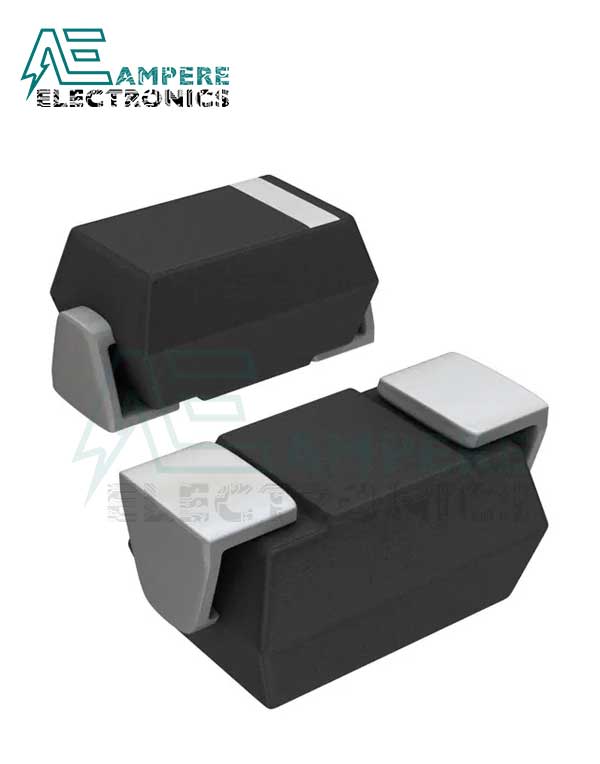

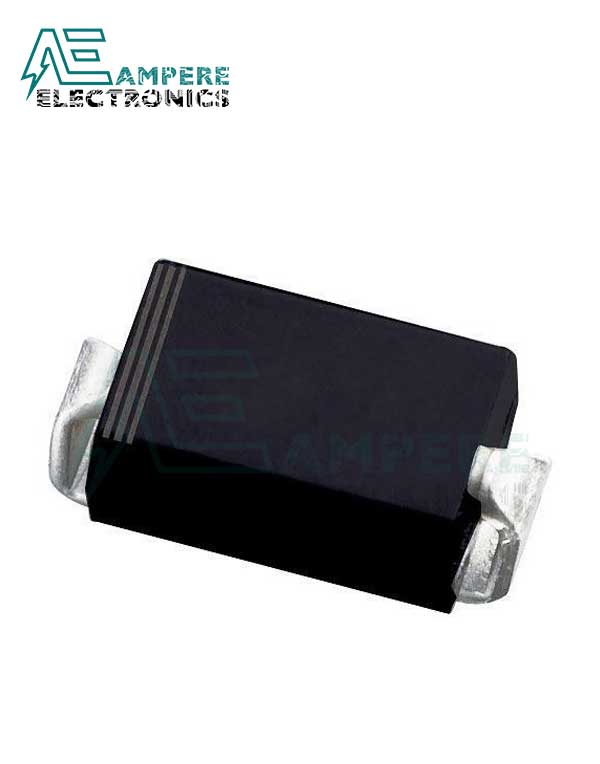

1N4007 SMD Diode – M7
1N4007 SMD Diode – M7
- 1000V reverse breakdown voltage
- 1A continuous forward current
- 15pF junction capacitance
- 1W power dissipation
Safe shopping
Your data is always protected
Sale_coupon_15
1,00EGP
In stock
In stock
14
People watching this product now!
-
Pick up from the Store
Everyday from 9 AM to 7 PM
-
ARAMEX DELIVREY
2-3 Days
Total fees when checkout
-
Return within 14 days
Payment Methods:
Description
1N4007 SMD Diode – M7
The M7 is a high voltage rectifier diode with a high continuous current capacity of 1A. It can be used in rectifier and reverse voltage protection applications in electronic appliances like chargers. Although the stated continuous current is 1A, the diode can handle more current if the duration of the pulse is short enough, up to 30A if a single half-sine wave at 60Hz is passed through it.
Features:
- 1000V reverse breakdown voltage
- 1A continuous forward current
- 15pF junction capacitance
- 1W power dissipation
Specifications:
| Product Attribute | Attribute Value |
|---|---|
| Diotec Semiconductor | |
| Product Category: | Rectifiers |
| RoHS: | Details |
| SMD/SMT | |
| DO-214AC-2 | |
| 1 kV | |
| 1 A | |
| Standard Recovery Rectifiers | |
| Single | |
| 1.1 V | |
| 27 A | |
| 5 uA | |
| 1.5 us | |
| – 50 C | |
| + 150 C | |
| M1-7 | |
| Reel | |
| Cut Tape | |
| MouseReel | |
| Brand: | Diotec Semiconductor |
| Product: | Rectifiers |
| Product Type: | Rectifiers |
| Subcategory: | Diodes & Rectifiers |
| Tradename: | M7 |
| Unit Weight: | 126 mg |
Package Includes:
- 1x 1N4007 SMD Diode – M7
