E18-D80NK Infrared Photoelectric Switch Sensor
E18-D80NK Infrared Photoelectric Switch Sensor
- Input Voltage: 5V
- Current Consumption: 25-100 mA
- Response time <2ms
- Sensor type: Diffuse reflective type
- Sensing range: 3-80 cm
- Cable length: 45 cm
Safe shopping
Your data is always protected
Sale_coupon_15
235,00EGP
In stock
In stock
13
People watching this product now!
-
Pick up from the Store
Everyday from 9 AM to 7 PM
-
ARAMEX DELIVREY
2-3 Days
Total fees when checkout
-
Return within 14 days
Payment Methods:
Description

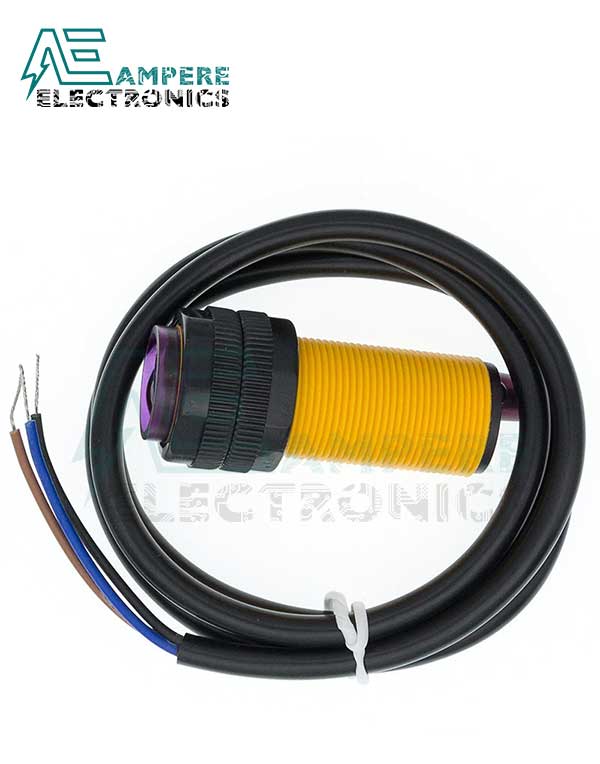

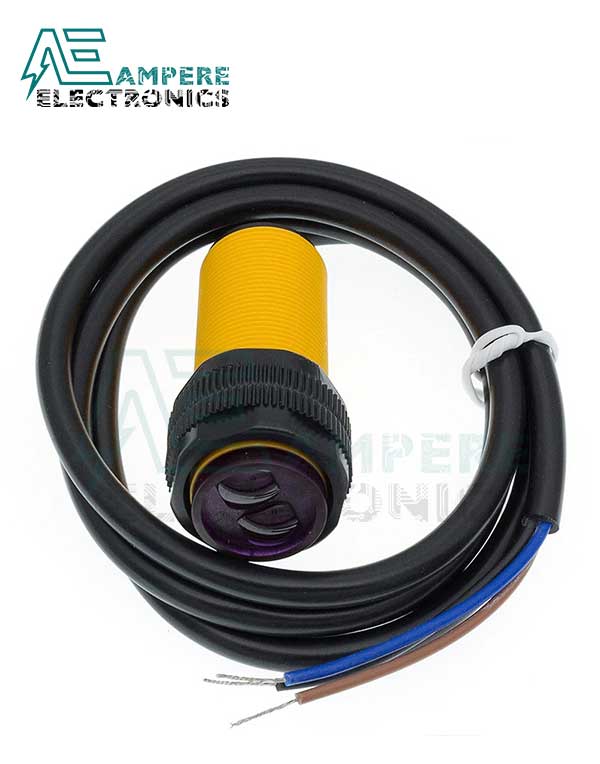

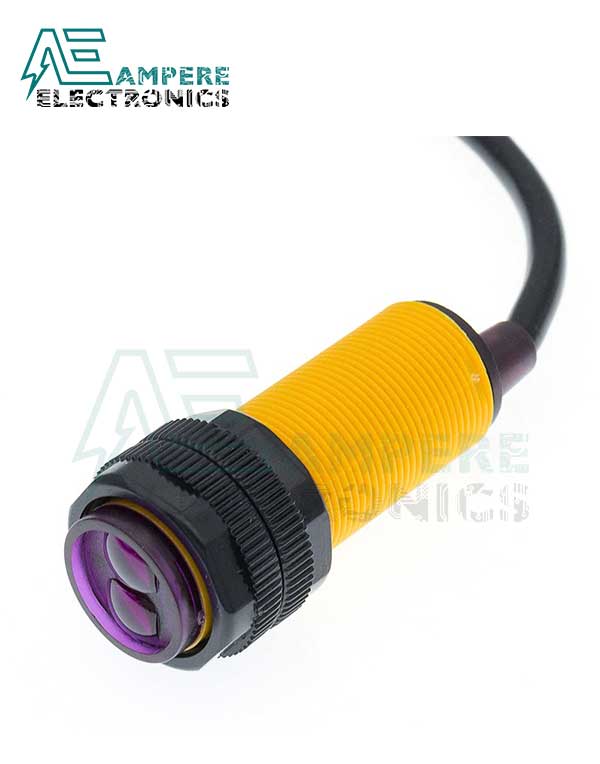

E18-D80NK Infrared Photoelectric Switch Sensor
E18-D80NK is a non-contact detection sensor providing a digital output when an object comes into a specific range of it. It is a low-cost, easy to assemble sensor with very little interference with the surrounding lights and environment.
Features:
- Input Voltage: 5V
- Current Consumption: 25-100 mA
- Response time <2ms
- Sensor type: Diffuse reflective type
- Sensing range: 3-80 cm
- Cable length: 45 cm
Applications
- Collision avoidance robots
- Machine automation
- Object detection
Size:
- Diameter: 17MM
- Sensor length: 45MM
- Lead Length: 45CM
Pin Configuration:
- VCC (Brown): Voltage input(+5V)
- GND (Blue): Ground terminal
- Signal (Black): Digital signal output
Wiring and instructions
Package Includes:
- 1x Proximity Sensor
