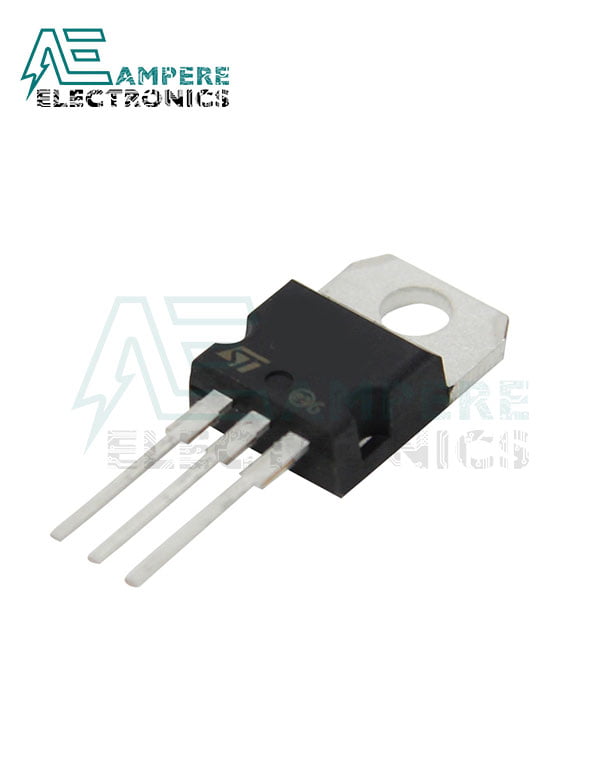

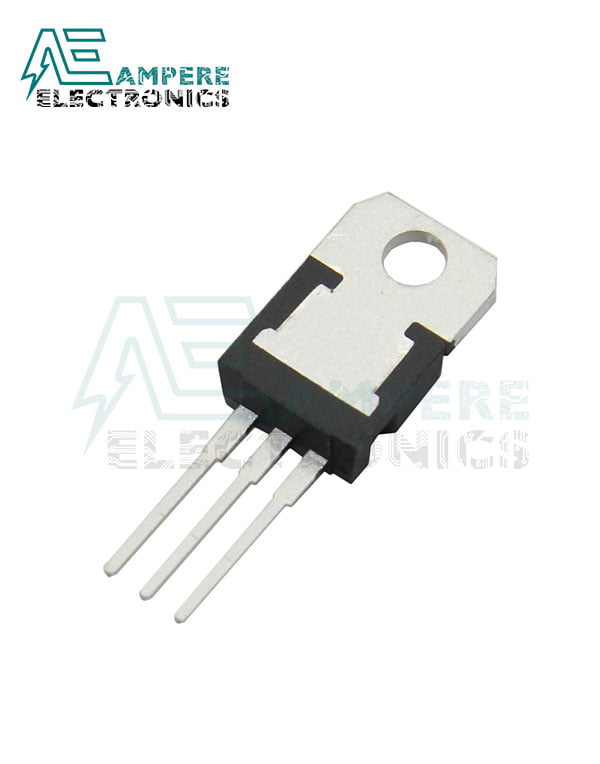

L7824CV Linear Voltage Regulator, 24V, 3-Pin, TO-220
L7824CV Linear Voltage Regulator, 24V, 3-Pin, TO-220
- Output voltages: 24V
- Output current up to 1.5A
- Thermal overload protection
- Output transition SOA protection
Safe shopping
Your data is always protected
Sale_coupon_15
14,00EGP
In stock
In stock
18
People watching this product now!
-
Pick up from the Store
Everyday from 9 AM to 7 PM
-
ARAMEX DELIVREY
2-3 Days
Total fees when checkout
-
Return within 14 days
Payment Methods:
Description
L7824CV Linear Voltage Regulator, 24V, 3-Pin, TO-220
STMicroelectronics L78 Series of fixed output voltage regulators are useful in a wide range of applications within the electronics Industry. The three terminal positive linear voltage regulators can remove problems that are related with single point regulation by providing local on-card regulation. The ST Regulator IC can deliver up to 1.5A at the fixed output voltage, which can range from 5 V to 24 V. The voltage regulator offers safe area protection with the addition of internal thermal shutdown and current limiting.
- Output voltages: 24V
- Output current up to 1.5A
- Thermal overload protection
- Output transition SOA protection
Specifications:
| Attribute | Value |
| Regulator Type | Linear Voltage |
| Maximum Output Current | 1.5A |
| Number of Outputs | 1 |
| Output Voltage | 24 V |
| Line Regulation | 480 mV |
| Load Regulation | 480 mV |
| Polarity | Positive |
| Mounting Type | Through Hole |
| Quiescent Current | 8mA |
| Package Type | TO-220 |
| Pin Count | 3 |
| Output Type | Fixed |
| Dimensions | 10.4 x 4.6 x 9.15mm |
| Maximum Operating Temperature | +150 ?C |
| Minimum Operating Temperature | 0 ?C |
| Height | 9.15mm |
| Maximum Input Voltage | 40 V |
| Length | 10.4mm |
| Width | 4.6mm |
Package Includes:
- 1x Voltage Regulator
