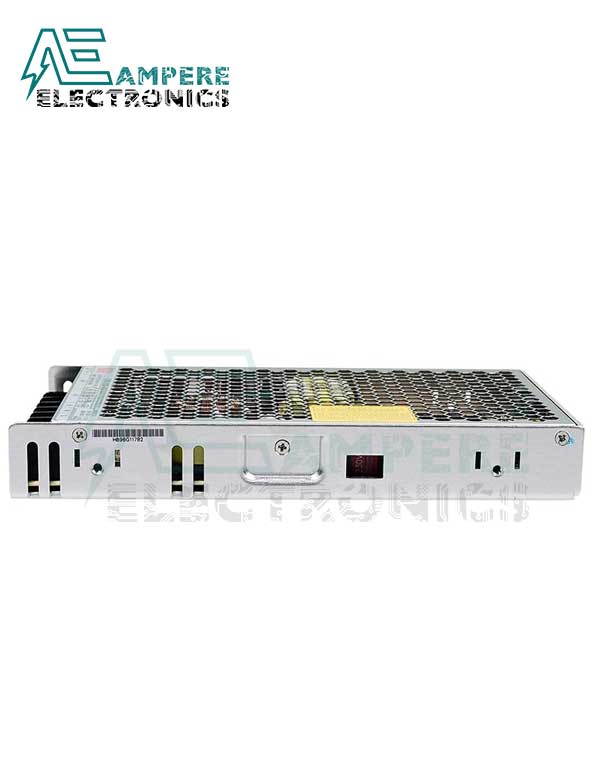

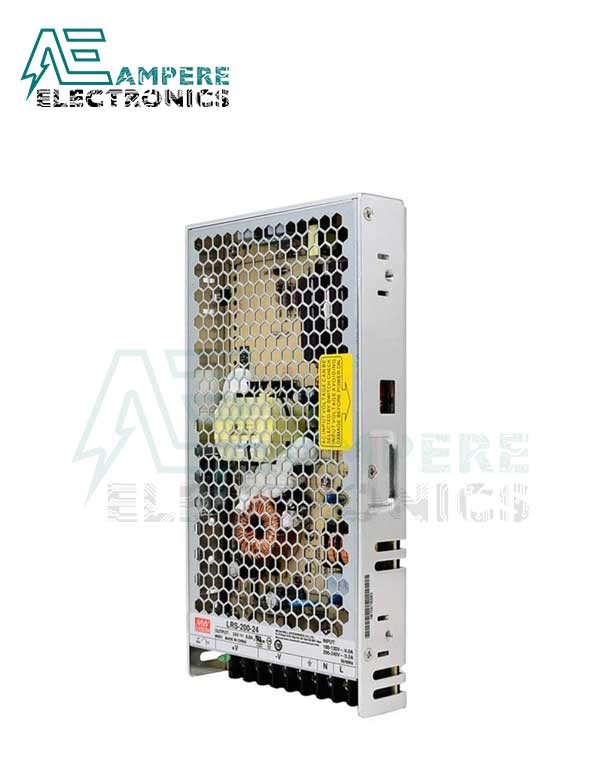

LRS-200-24 MEAN WELL Power Supply 24Vdc, 8.8A, 211W
LRS-200-24 MEAN WELL Power Supply 24Vdc, 8.8A, 211W
- Low profile
- Highly efficient enclosed
- Surge input is 300VAC with a 5 second duration
- Up to 88% efficiency rating, with less than 0.3W no load power consumption
- Vibration resistance is 5G
- Free air convection cooling
- Operating altitude up to 5000m
- High reliability
Safe shopping
Your data is always protected
Sale_coupon_15
1.375,00EGP
In stock
In stock
-
Pick up from the Store
Everyday from 9 AM to 7 PM
-
ARAMEX DELIVREY
2-3 Days
Total fees when checkout
-
Return within 14 days
Payment Methods:
Description
LRS-200-24 MEAN WELL Power Supply 24Vdc, 8.8A, 211W
The Mean Well LRS-300 series 300W single output AC to DC enclosed switch mode power supply has an output current rating of 14.6A at 24VDC. It has a universal input supply voltage rating ranging from 85VAC to 264VAC and 120VDC to 373VDC. It provides a metallic meshing and air convection to ensure optimum heat dissipation. The power supply can deliver an extremely low, no-load power consumption. The power supply meets anti-vibration demand up to 5G capability and makes it ideal for installing in testing environments.
Features:
- Low profile
- Highly efficient enclosed
- Surge input is 300VAC with a 5 second duration
- Up to 88% efficiency rating, with less than 0.3W no load power consumption
- Vibration resistance is 5G
- Free air convection cooling
- Operating altitude up to 5000m
- High reliability
Applications:
- Control machinery
- Electrical equipment
- Household appliances
- Industrial automation
- Mechanical
Certifications:
- EN60335-1
- EN60950-1
- EN61558-1/-2-16
- GB4943
- UL60950-1
Specifications:
| Attribute | Value |
| Output Voltage | 24V dc |
| Output Current | 8.8A |
| Power Rating | 211.2W |
| Number of Outputs | 1 |
| Input Voltage | 120 ? 373 V dc, 85 ? 264 V ac |
| Mounting Type | Chassis Mount |
| Package Type | Enclosed |
| Length | 215mm |
| Width | 115mm |
| Depth | 30mm |
| Weight | 660g |
| Efficiency | 88% |
| Maximum Temperature | +70?C |
| Minimum Temperature | -30?C |
Package Includes:
- 1x MEAN WELL Power Supply
Product Datasheet:
