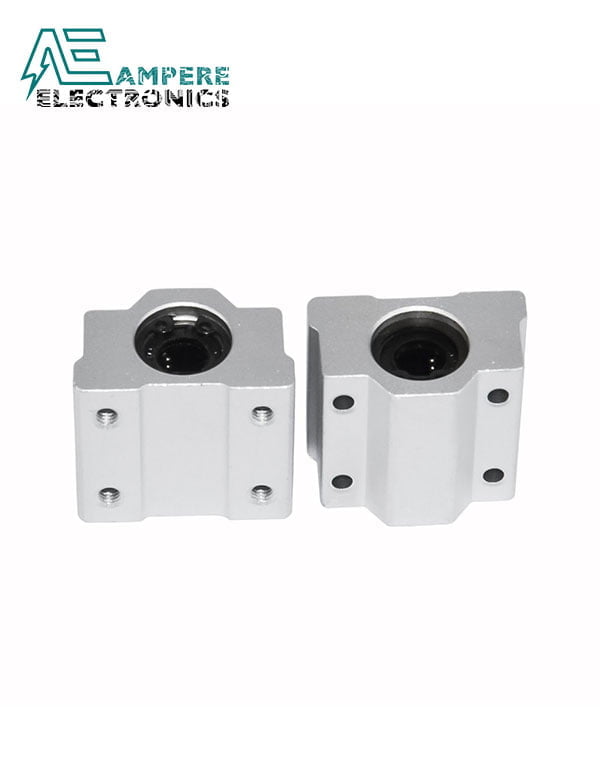

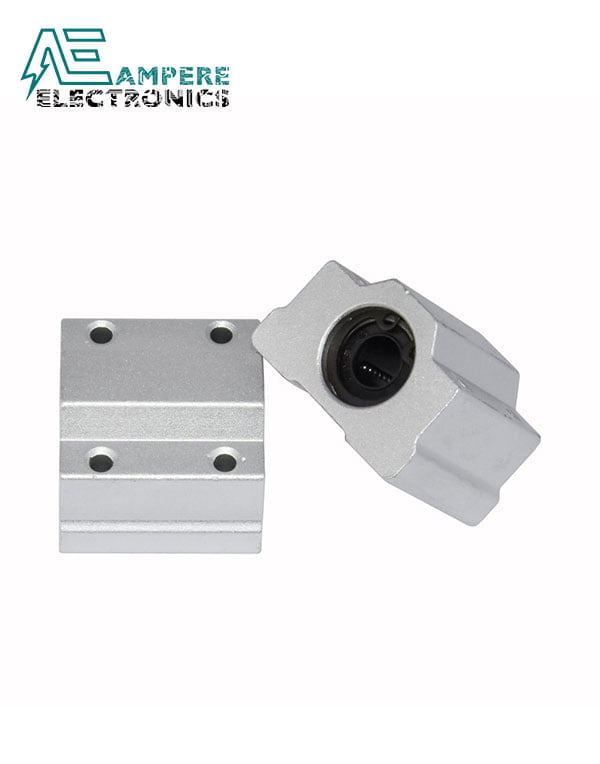

SCS16UU Linear Ball Bearings Block, 16mm Inner Diameter
SCS16UU Linear Ball Bearings Block, 16mm Inner Diameter
- Aluminum alloy linear ball bearing slide pillow block unit.
- Chrome steel LM16UU linear bearing with light-weight aluminum housing.
- Anodized surface, high hardness, corrosion resistance, not rust, low noise.
- Accurate machining size for the aluminum block, convenient installation and replacement.
- There are sealing rings on both ends of linear bearing, which has good dustproof effect and prolongs service life.
Safe shopping
Your data is always protected
Sale_coupon_15
120,00EGP
In stock
In stock
12
People watching this product now!
-
Pick up from the Store
Everyday from 9 AM to 7 PM
-
ARAMEX DELIVREY
2-3 Days
Total fees when checkout
-
Return within 14 days
Payment Methods:
Description
SCS16UU Linear Ball Bearings Block, 16mm Inner Diameter
- Aluminum alloy linear ball bearing slide pillow block unit.
- Chrome steel LM16UU linear bearing with lightweight aluminum housing.
- Anodized surface, high hardness, corrosion resistance, not rust, low noise.
- Accurate machining size for the aluminum block, convenient installation, and replacement.
- There are sealing rings on both ends of the linear bearing, which has a good dustproof effect and prolongs service life.
Specifications:
- Bearing Model: SCS16UU
- Inner Diameter (d): 16 mm
- Block Width (W): 50 mm
- Block Length (L): 44 mm
- Block Height (F): 38.5 mm
- Mounting Hole Pitch (B): 36 mm
- Mounting Hole Pitch (C): 34 mm
- Mounting Hole (S1): M5
- Dynamic Loading (CN): 774 kg/m
- Static Loading (CoN): 1180 kg/m
Package includes:
- 1x SCS16UU
3D Model:
