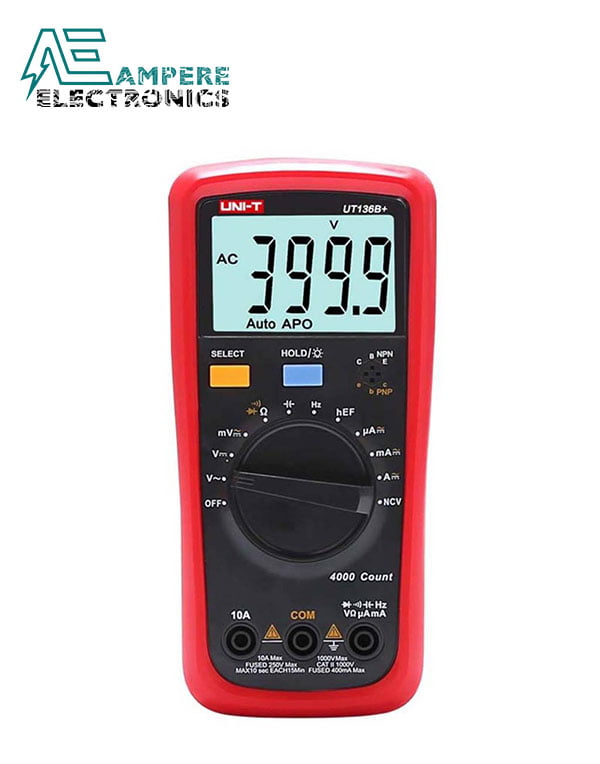

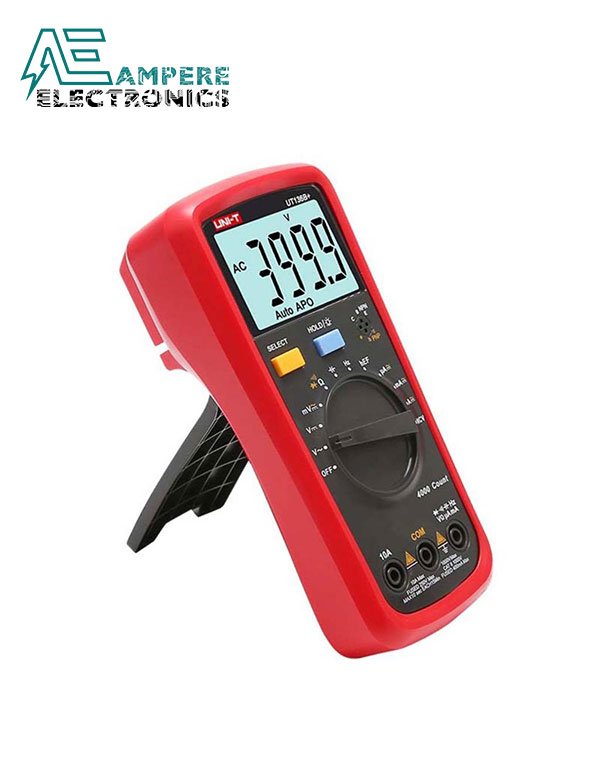

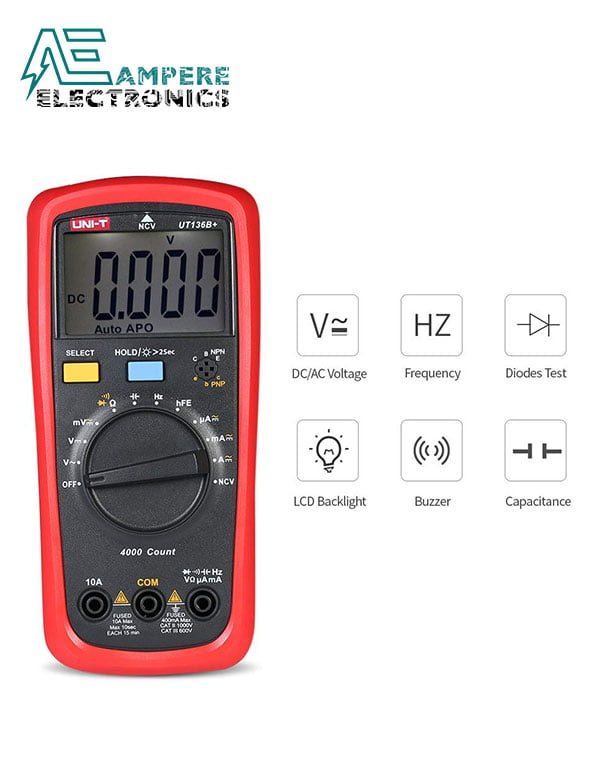

UT136B Plus Digital Multimeter Auto Range | UNI-T
UT136B Plus Digital Multimeter
- Measures up to 1000V and 10A AC/DC voltage and current
- Equipped with 3mm protective sleeve; 2 meters drop proof
- Large LCD display; Overload alarm
- Quick sampling rate, up to 4 times/s
- Quick capacitor measurement (measures 1mF in 4 seconds)
- Low power consumption and auto power saving function; long battery service life (>500hrs)
SKU:
23362

Safe shopping
Your data is always protected
Sale_coupon_15
900,00EGP
In stock
In stock
18
People watching this product now!
-
Pick up from the Store
Everyday from 9 AM to 7 PM
-
ARAMEX DELIVREY
2-3 Days
Total fees when checkout
-
Return within 14 days
Payment Methods:
Description
UT136B Plus Digital Multimeter Auto Range | UNI-T
Has an innovative industrial design which ensures that the product can withstand a drop of 2 meters height. Large LCD screen provides a clear display and its 4 times/second sampling rate provides users with more accurate readings. UT136+ series is designed to work safely in CAT II1000V/CAT III 600V environment.
Features:
- Measures up to 1000V and 10A AC/DC voltage and current
- Equipped with 3mm protective sleeve; 2 meters drop proof
- Large LCD display; Overload alarm
- Quick sampling rate, up to 4 times/s
- Quick capacitor measurement (measures 1mF in 4 seconds)
- Low power consumption and auto power saving function; long battery service life (>500hrs)
Specifications | Range | UT136B+ |
DC voltage (V) | 1000V | ±(0.7%+3) |
AC voltage (V) | 1000V | ±(1%+3) |
DC current (A) | 10A | ±(1%+3) |
AC current (A) | 10A | ±(1.2%+5) |
Resistance (?) | 40M? | ±(0.8%+2) |
Capacitance (F) | 40mF | ±(3%+5) |
Frequency (Hz) | 400Hz~40mHz | ±(0.1%+4) |
Features | ||
Display count | 4000 | |
hFE | Transistor measurement | √ |
NCV | Non-contact voltage detection | √ |
Diode/transistor | √ | |
Continuity buzzer | √ | |
Data hold/Auto power off | √ | |
Low battery/Indication | √ | |
LCD backlight | √ | |
Safety rating | CAT ? 1000V, CAT ? 600V | √ |
Drop test | 2m | √ |
General Characteristics | ||
Power | 1.5V battery (R6) x 2 | |
Display | 56.5mm x 36mm | |
Product color | Red and grey | |
Product net weight | 330g | |

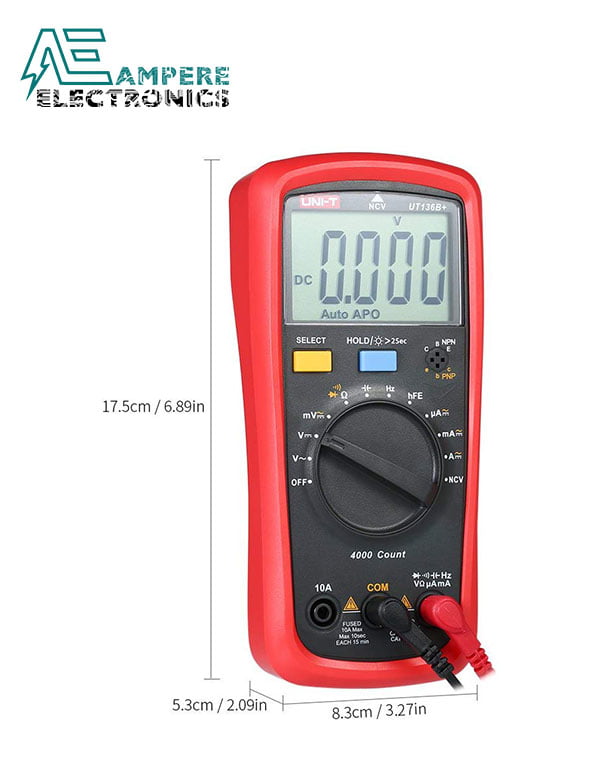

Product size | 175mm x 83mm x 53mm | |
Standard accessories | Batteries, test leads | |
Standard individual packing | Gift Box, English manual | |
Standard quantity per carton | 30pcs | |
Standard carton measurement | 390mm x 335mm x 340mm | |
Standard carton gross weight | 12.75kg |
